Intelligent central control using centralized control, centralized monitoring, data acquisition, intelligent comparison, data analysis, parameter settings, inspection self-test, regular inspection prompts, early warning alarm prompts, effective protection of on-site equipment, to extend the life cycle of the equipment, improve efficiency, effective and rational use of resources, saving production costs, environmental protection and high efficiency, is the current mining industry, environmental protection and production, green development of the best choice.

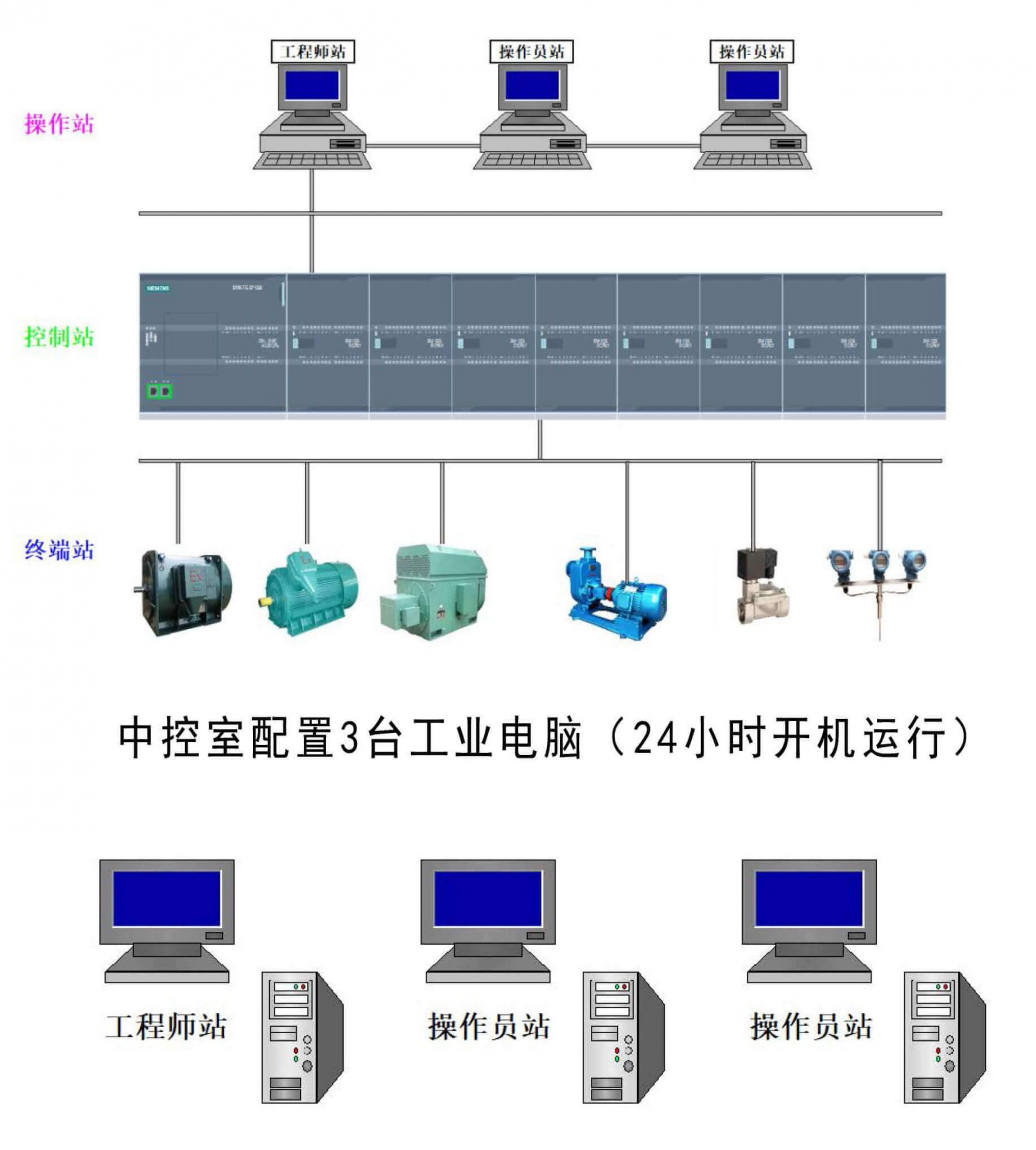

Engineer station (server) is the core of the whole intelligent system, using Siemens Botulinum TIA Wincc SCADA upper computer programming, and intelligent slave station Siemens PLC for S7 Ethernet communication, reading the working status of the field equipment, equipment operation current, record the life cycle of the field equipment operation, as well as the field equipment operation alarm records; at the same time, the engineer station is used in the system programming, system maintenance, Meanwhile, the engineer station is used for system programming, system maintenance, parameter modification, operation screen editing and modification, etc. The operator station (client) adopts one-use and one-standby (redundant configuration) to prevent dead machine jamming during operation, and is used for starting and stopping operation of on-site equipment, monitoring of equipment operation status, display of equipment operation data, temperature and humidity of the equipment operating environment, alarms for equipment faults (overload, high temperature, phase loss), and emergency treatment.
The control station is the center of the intelligent control system, the start-stop command of the central control, the field data collection and feedback must pass through the control station. The terminal station is the final object of the intelligent control system. Sensors and transmitters are added according to the site layout, safety norms and process requirements to effectively protect the reliable, stable and sustainable operation of the belt, vibrating screen, cone machine, jawbreaker and other mining equipments.
Thin oil station for cone machine-adding oil tank temperature, oil supply temperature, oil return temperature, oil supply pressure, oil supply flow, oil return switch, and other sensors to detect the lubrication system, which can effectively ensure the efficient and stable operation of the cone crusher.
Belt, vibrating screen, water pump motor add current transmitter, temperature transmitter to effectively detect the motor running status, set the alarm current, upper limit current, alarm temperature, upper limit temperature, as well as over-temperature, overload to take corresponding measures, such as reducing the operating load, air-cooled or electrically cooled cooling and so on.
